Flexible Manual Hydraulic Stacker , Manual Stacker Pallet Truck 1235mm ​Turning Radius

Product Categories
Shanghai Reach Industrial Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Flexible Manual Hydraulic Stacker , Manual Stacker Pallet Truck 1235mm ​Turning Radius

  • 1
  • 2

Brand Name : REACH

Model Number : SDJA500

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 25 - 30 days

Packaging Details : 1set / pallet

Capacity : 500kg

Max. lifting height : 1600mm

Height, mast lowered : 2000mm

Height, mast extended : 2010mm

Width overall forks : 200-745mm

Aisle width for pallets 1000*1200 crossways : 1915mm

Aisle width for pallets 800*1200 lengthways : 1910mm

Turning radius : 1235mm

Service weight : 161kg

Contact Now

Flexible 500kg manual pallet stacker with 1600mm lifting height

Quick Details:

Capacity: 500kg

Height, mast lowered: 2000mm

Max. lift height: 1600mm

Height, mast extended: 2010mm

​Fork dimensions: 48/180/800(1060)mm

Width overall forks: 200-745mm

Aisle width for pallets 1000*1200 crossways:1915mm

​Aisle width for pallets 800*1200 lengthways: 1910mm

​Turning radius: 1235mm

​Lift speed, laden/unladen: 25mm/time

Advantages:

  • ​​​The paint is treated with high temperature spray, smooth, beautiful and corrosion-resistant.

  • Configure the safety cover, use more safe, prevent from pressing to the foot.

  • With the wear-resistant wheel the manual pallet stacker is convenient to pull.

  • The mast is welded by high quality steel by robot, which can be used for a long time.

  • The ergonomic design is comfortable, convenient and labor-saving.

Flexible Manual Hydraulic Stacker , Manual Stacker Pallet Truck 1235mm ​Turning Radius

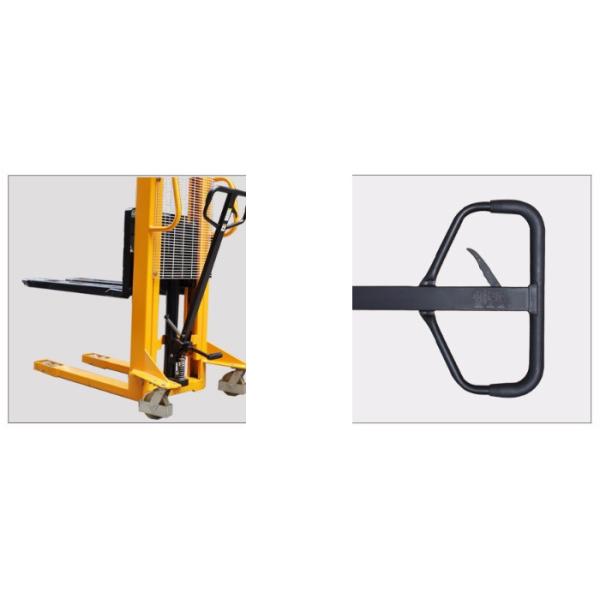

The conventional handle pressing lifting and Rubber wrapped handle, 3 position hand

foot lifting function two kinds of configuration, control - Raise, Lower, Neutral.

humanized design, convenient for the operator.

SPECIFICATIONS
Model SDJA500
Load capacity/rated load kg 500
Load center distance mm 500
Fork height, lowered mm 90
Height, mast lowered mm 2000
Max. lifting height mm 1600
Height, mast extended mm 2010
Overall length mm 1380/1640
Overall width mm 805
Fork dimensions mm 48/100/800(1060)
Width overall forks mm 200~745
Ground clearance, centre of wheelbase mm 20
Aisle width for pallets 1000*1200 crossways mm 1915
Aisle width for pallets 800*1200 lengthways mm 1910
Turning radius mm 1235
Lift speed, laden/unladen mm/time 25
Lowering speed, laden/unladen mm/s Manual control
Service weight kg 161

​
