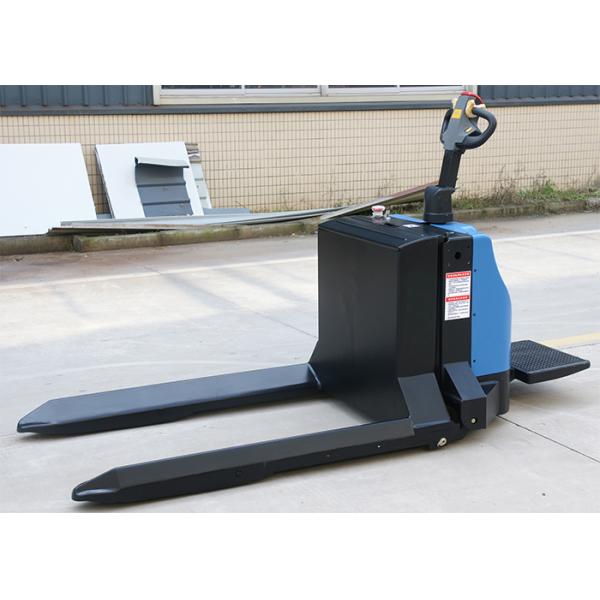

2.5 ton Electric pallet truck as jack pallet truck and pallet jack

  • 1
  • 2

Brand Name : REACH

Model Number : KLT25

Certification : CE,TUV

Place of Origin : Ningbo, China

MOQ : 1

Price : 2900~3500

Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 600 units/month

Delivery Time : 25 days after donw payment

Packaging Details : pallet

Capacity : 2500kg

Max lift height : 190mm

overal length : 1770mm

Travel speed : 5km/h

Overal width : 735mm

Front wheel : 85x70mm

Driving wheel : 230x75

Contact Now

1.5 ton Electric pallet truck as jack pallet truck and pallet jack

Specification

Model KLT25
Load capacity KG 2500
Load centre distance mm 600
Fork height, lowered mm 85
Wheels, number front rear(x=driven wheels) 1x-2/4
Overall width mm 735
Fork dimensions mm 55/160/1150
Travel speed, laden/unladen Km/h 4.0 / 5.0
Battery voltage, nominal capacity K20 V/Ah 24/210

Advantage

Electric power steering system ( EPS )
CURTIS controller, ALBRIGHT contactor, AMP waterproof power connector
Double cylinders rise synchronously, maximum height automatically cuts off
The rear truck bottom is specially vevel shaped, has a good pass. Maximum 20% of the short slope.
Floating Drive Axle Supports agile steering, high performance of uphill climbing, helps to reduce vibration and noice.
Adopting floating balance wheel can prevent the side swing oftruck when travelling. Travel smoothly and no swing;great anti-vibration.

2.5 ton Electric pallet truck as jack pallet truck and pallet jack

Package:

The trucks will be packed with pallets and plastics or cartons.

2.5 ton Electric pallet truck as jack pallet truck and pallet jack
